Product Description

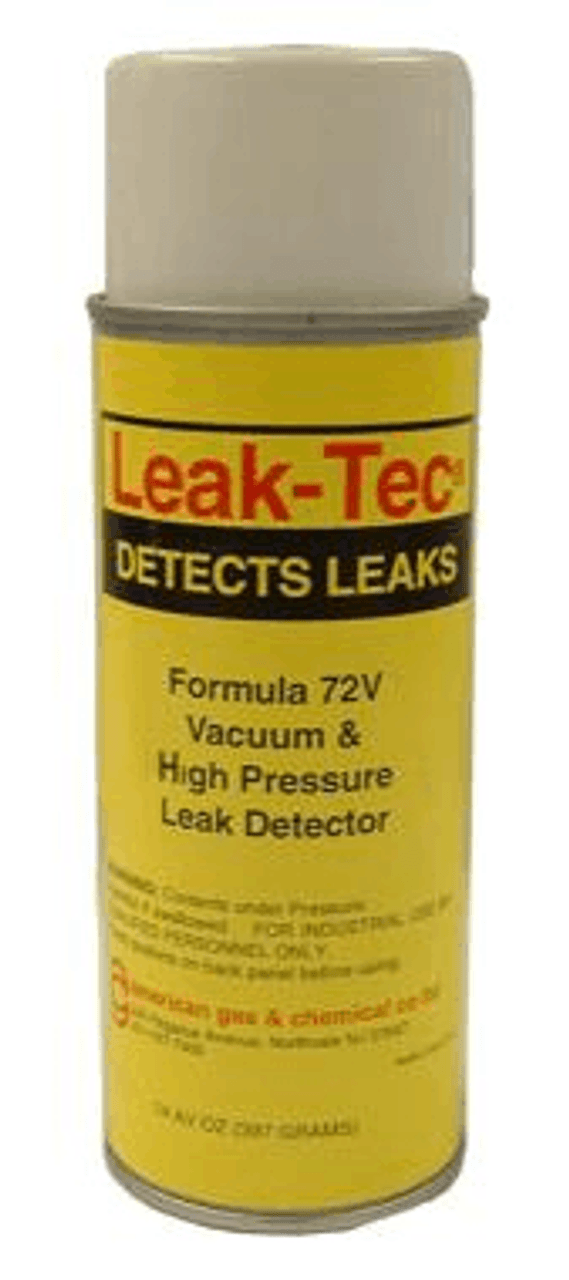

Leak-Tec 72V-41 (Case of 12 (14oz) Aerosol) vacuum & high pressure leak detector
For vacuum testing. Aerosol foam is sprayed on the suspected leak area in a thin coating and expands on contact to form a continuous layer of foam.
Foam is drawn in at a crack or pin hole leaving a crater or hole in the foam layer.
USE: The can should be shaken well before each application.
BOILING POINT: 212°F.
VAPOR PRESSURE: 17.5mm. Hg, 20°C
PERCENT VOLATILE: 90+
VAPOR DENSITY: (Air=1) >1
DENSITY: 1.00-1.02
EVAPORATION RATE: (Water=1) <1
WATER SOLUBILITY: Emulsion
APPEARANCE: White foam
pH: 8.5-9.5
ODOR: Mild odor
Temperature range: +35° to 170° F.
Corrosion Index: V.
Sensitivity: 5x10-4cc/sec.
Certification and/or test report available at extra cost.
Note: Leak-Tec 72V cannot ship by air.
Thin film bubble testing is the most common and one of the most reliable methods of detecting and locating leaks.
Thin film leak testing has many inherent advantages:
• It is easy to use and requires little operator training.
• It is inexpensive to use and not subject to break down like complex instrumentation.
• It operates immediately and continues to give indications.
• It can be extremely sensitive, finding leaks down to 1 x 10-4 (.000001) standard cc/second. The equivalent of losing a pound of Freon every 2,700 years.
